Tech Parameter:
| Model 产品型号 | ST-LL02-15W | ST-LL02-24W | ST-LL02-32W | ST-LL02-40W | ST-LL02-50W | ST-LL02-60W |
| Power 功率 | 15W | 24W | 32W | 40W | 50W | 60W |
| Luminous Flux 光通量 |
2511.6Lm | 3733.8Lm | 5263.5Lm | 6215.6Lm | 6658.4Lm | 7813.2Lm |
| CCT and CRI 色温/显指 |
CCT:3000K-6500K/Optional 可选 CRI:60/70/80/Optional 可选 | |||||
| LED 灯珠 | Nichia/Cree/Luminleds/Optional 可选 | |||||
| Input Voltage 输入电压 |
AC100-240 50-60Hz/AC200-240V 50Hz/Optional 可选 | |||||
| IP Rating IP等级 | IP20 | |||||
| Working Temperature 工作温度 |
-30~+45℃ | |||||
| Life time 使用寿命 | 50000Hours | |||||
| Warranty 保修期 | 5 Years | |||||
| Dimensions(mm) 尺寸(mm) |
L591.5*W70*H100mm | L1183*W70*H100mm | ||||
| N.W.(Kg) 净重(Kg) | 1.2±0.1kg | 2.4±0.1kg | ||||
Dimensions：

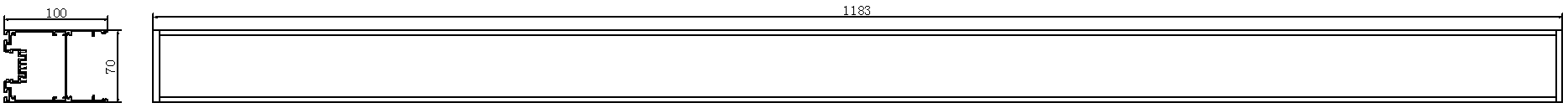

40-60W

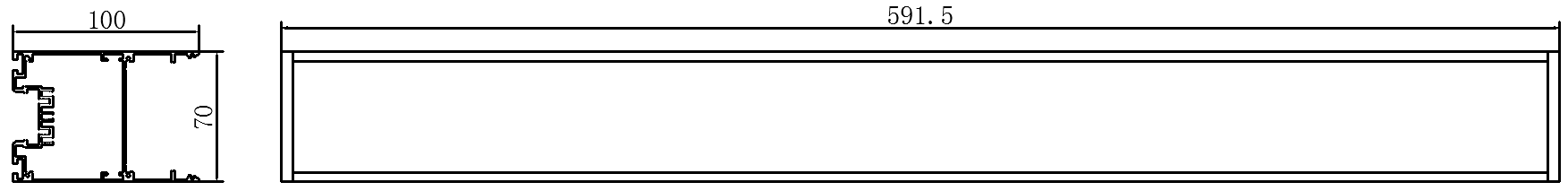

15-32W
Photometric characteristics
90 Degree beam angle
