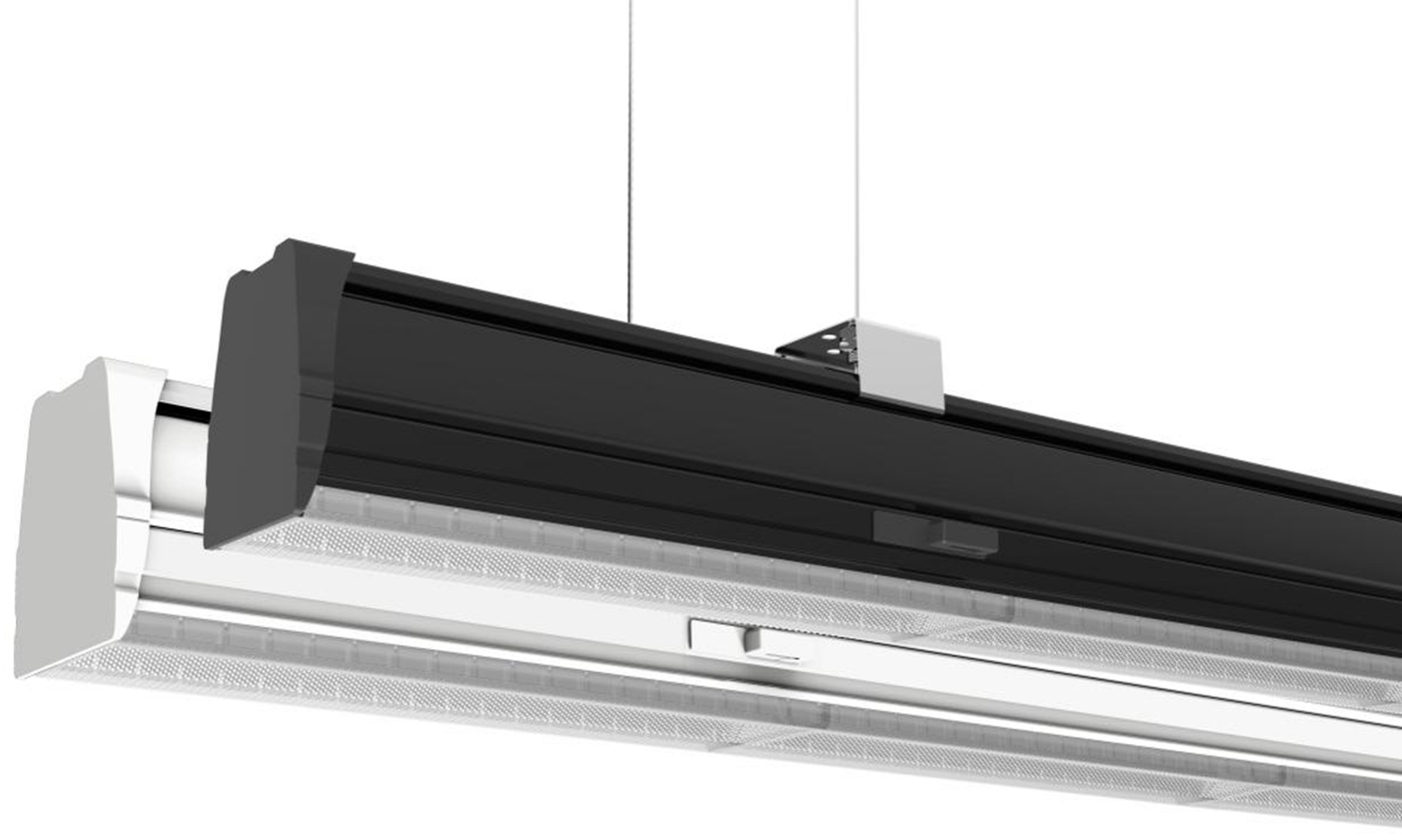

Tech Parameter
| Model | ST-LL01-15W | ST-LL01-24W | ST-LL01-32W | ST-LL01-40W | ST-LL01-50W | ST-LL01-60W |
| Power | 15W | 24W | 32W | 40W | 50W | 60W |
| Luminous Flux | 2511.6Lm | 3733.8Lm | 5263.5Lm | 6215.6Lm | 6658.4Lm | 7813.2Lm |
| Luminous efficacy | 167.0Lm/W | 155.6Lm/W | 164.5Lm/W | 155.4Lm/W | 166.5Lm/W | 130.2Lm/W |
| CCT and CRI | CCT:3000K-6500K/Optional CRI:60/70/80/Optional | |||||
| LED | Nichia/Cree/Luminleds/Optional | |||||
| Input Voltage | AC100-240/AC200-240V/Optional | |||||
| Power Supply | AGT/Optional | |||||
| Dimmalbe | Dimmable:0-10V Dimming/DALI /Non-Dimmable | |||||
| IP Rating | IP20 | |||||
| Working Temperature | -30~+45℃ | |||||
| Life time | 50000Hours | |||||
| Warranty | 5 Years | |||||
| Dimensions(mm) | L570*W68*H70mm | L1136*W68*H70mm | L1418*W68*H70mm | |||
| N.W.(Kg) | 1.3±0.1kg | 2.5±0.1kg | 3.1±0.1kg | |||

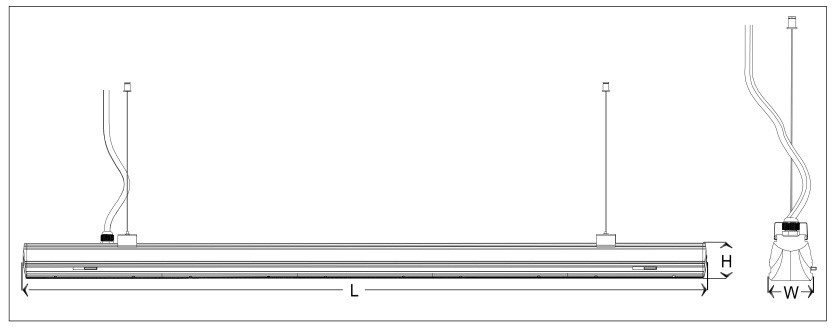

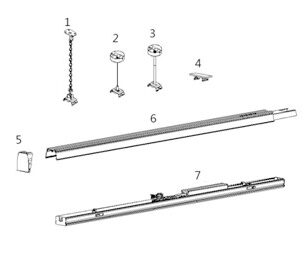

Dimensions:
| 1.Chain fitting |
| 2.Wirerope fitting |
| 3.screw fitting |
| 4.Fasteners |
| 5.End-cap |
| 6.Track |
| 7.Lighting |

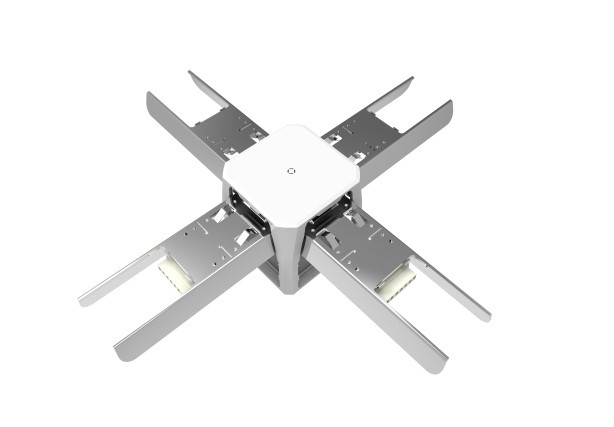

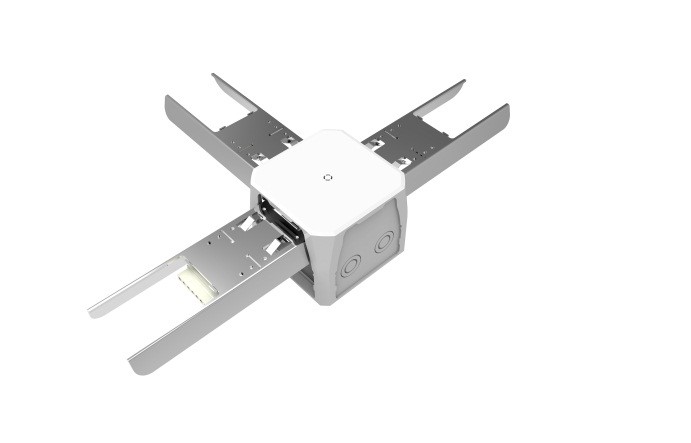

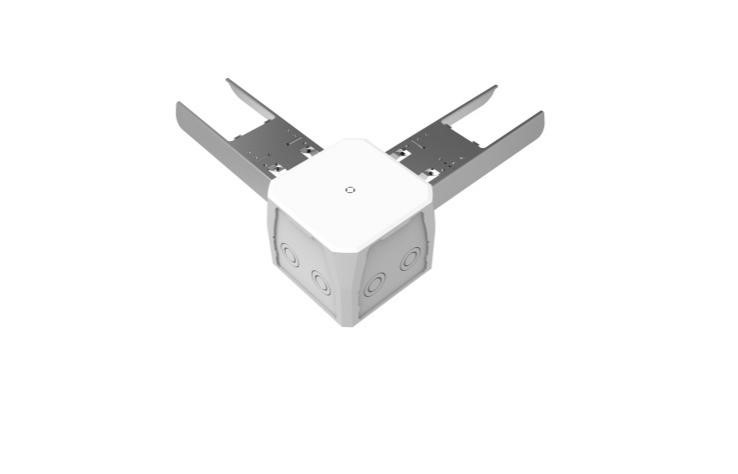

Accessories:

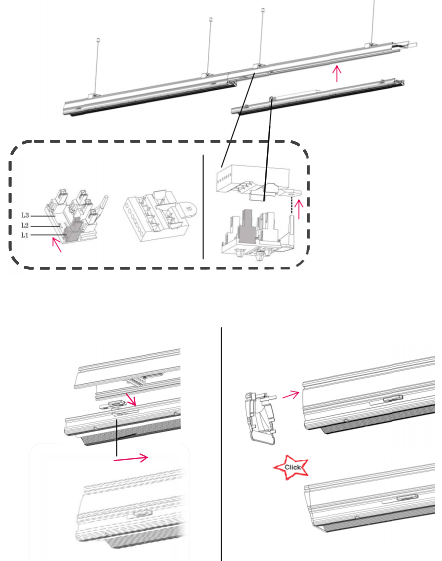

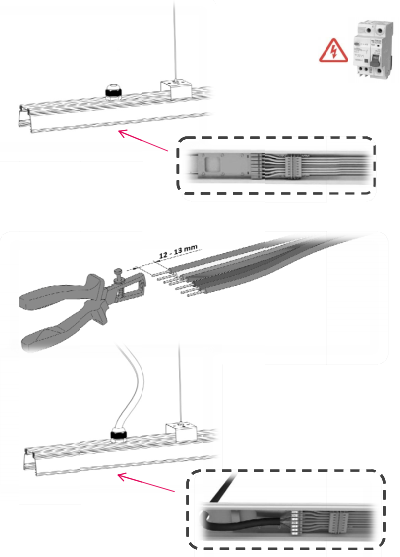

Mounting Options:

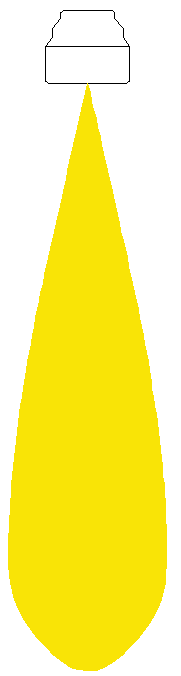

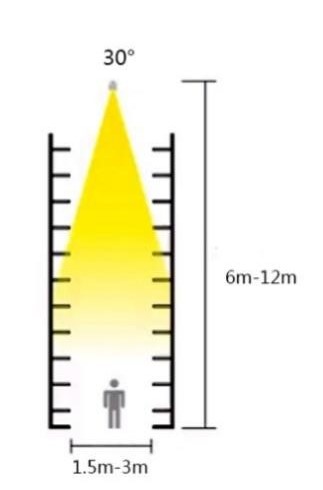

30° beam angle
– For warehouse lighting
This sharp angle is ideal for application of the industrial sector such as warehouse and precise working area etc.
Applied to warehouse shelving can make goods be seen easily and clearly. For the other unimportant areas, the light will be less bright so that all goods on shelf will be highlighted.
The high uniform illumination helps to reduce fault in precise working .In other words, it helps to increase production efficiency.

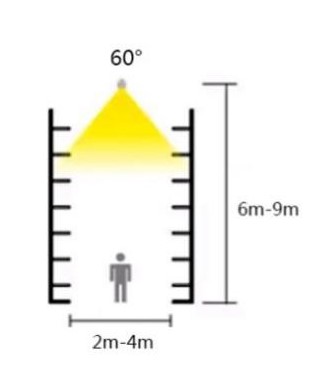

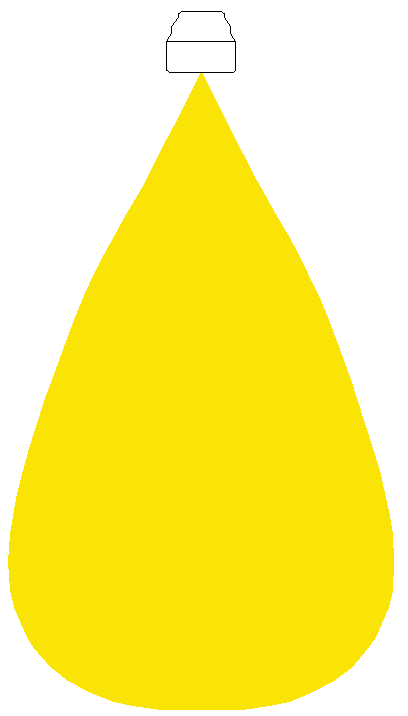

60 ° beam angle
– For Hospital Courior 60
This narrow angle is ideal for corridors, aisles and passages of hospital , schools, office building etc .It gives well-distributed illumination , not too bright or too dark for general lighting in corridors .With blank lamp , it saves more energy, keeping less and easy installation work

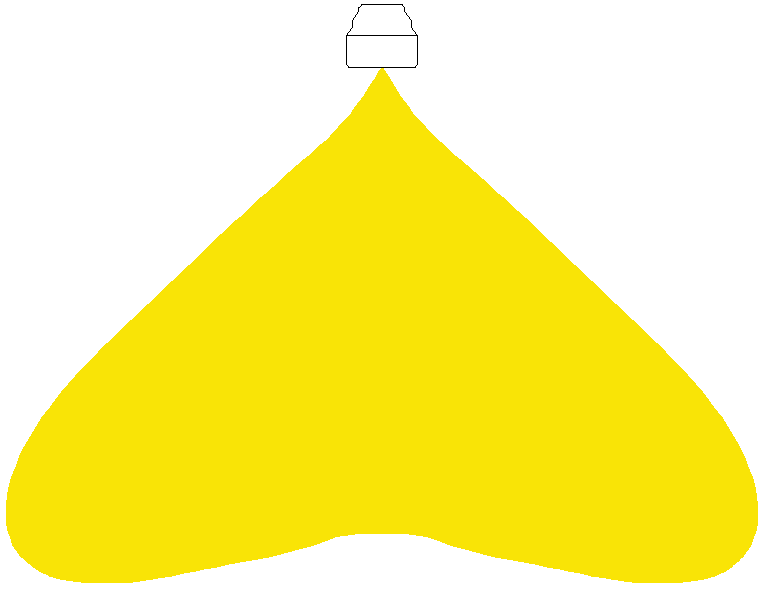

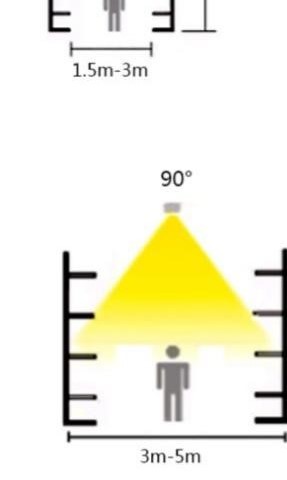

90°beam angle
– For Indoor basketball Court
The wide angle is ideal for lighting more spaces and wide applications. In this way , the light can cover more spaces and wider applications with good illumination distribution, best for car parking place, dinning halls and wider shelf with longer distance.

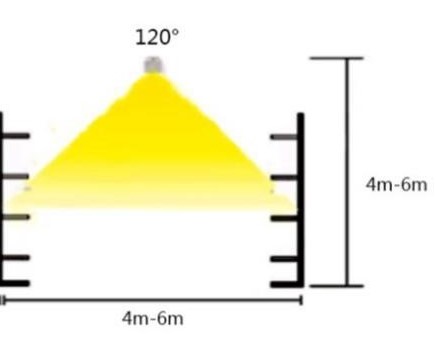

120 °beam angle
– For Office Lighting
It’s applicable for general lighting like office building, schools ,airport or train station, meeting halls ,etc. It makes light well-distributed with low glare, and also bright enough for working or study, which is good for human eyes .

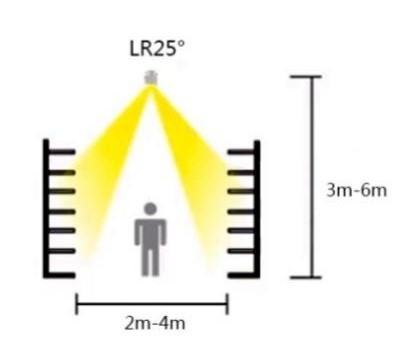

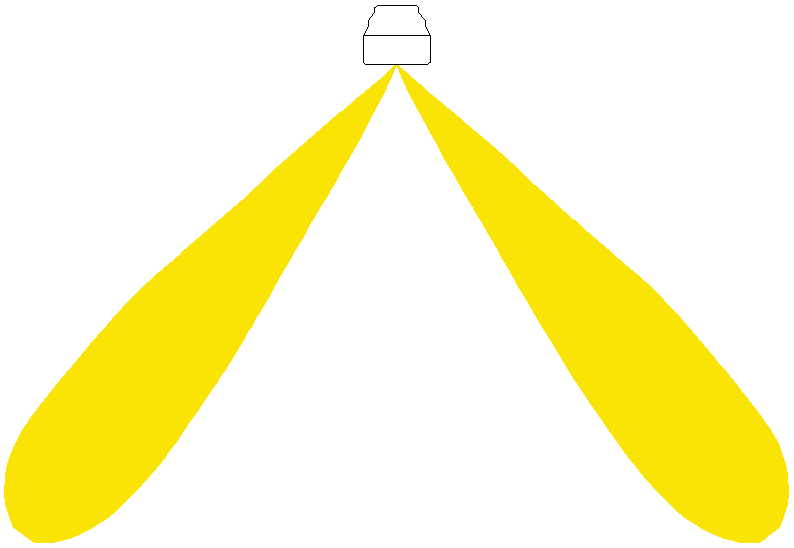

Double Sysmmetric 25 °beam angle
– For Office Lighting
It’s applicable for general lighting like office building, schools ,airport or train station, meeting halls ,etc. It makes light well-distributed with low glare, and also bright enough for working or study, which is good for human eyes .
