Features

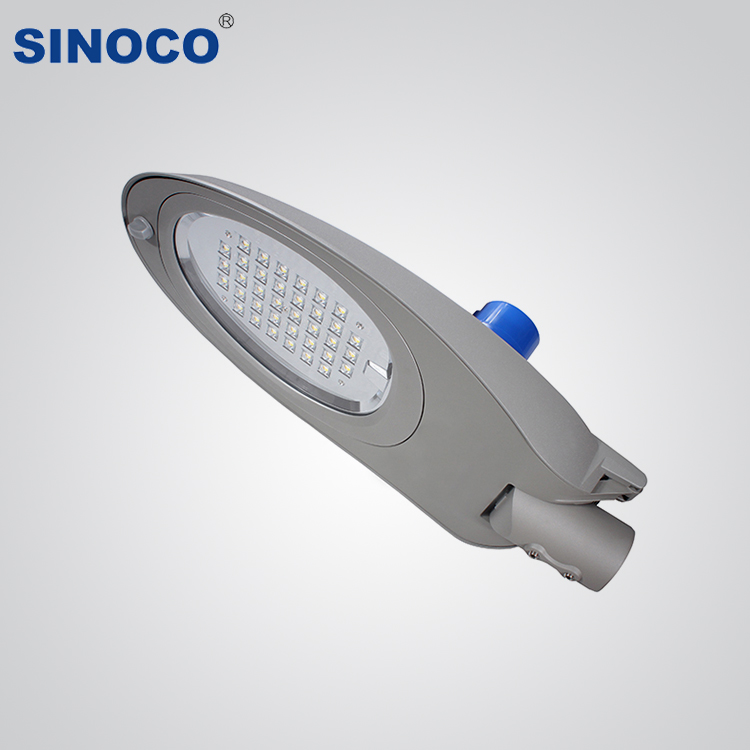

| Product | Led street light (ST-41) |
| Certification | TUV ENEC, CB, CE, IK10, IP66, LM79, LM80, TM-21 |
| Warranty | 5 years |
| Lamp body | Die-cast aluminum |
| Light source | Nichia Led |
| Luminaire’s Efficiency | 120~130Lm/W |
| Optical | High temperature resistant PP plastic reflector UV treatment surface, super white toughened glass |
| Gear plate | Galvanized steel plate, botton design for opened device |
| Electric | Quick on/off connector when it’s opened |
| Finishing | Surface anti-ageing electrostatic spray processing Super resistance to corrosion |
| Installation height | 4 – 10M |
| Fixing | Top or side fitting ø60 or ø76mm, angle can be adjustable |
Parameter
| Model | Power | Input voltage | Light Source |
Luminous Flux |
Luminaire’s Efficiency |
Product size | N.W | G.W | Packing (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ST-41-30W | 30W | 100-277VAC 50-60HZ |
Nichia Led | 3903Lm | 120-130Lm/W | L620 * W295 * H152mm | 7.3kg | 8.3kg | L670 * W340 * H200mm |
| ST-41-40W | 40W | 100-277VAC 50-60HZ |
Nichia Led | 5255Lm | 120-130Lm/W | L620 * W295 * H152mm | 7.3kg | 8.3kg | L670 * W340 * H200mm |
| ST-41-60W | 60W | 100-277VAC 50-60HZ |
Nichia Led | 7090Lm | 120-130Lm/W | L620 * W295 * H152mm | 7.3kg | 8.3kg | L670 * W340 * H200mm |
| ST-41-80W | 80W | 100-277VAC 50-60HZ |
Nichia Led | 9556Lm | 120-130Lm/W | L620 * W295 * H152mm | 7.3kg | 8.3kg | L670 * W340 * H200mm |
| ST-41-100W | 100W | 100-277VAC 50-60HZ |
Nichia Led | 12212Lm | 120-130Lm/W | L620 * W295 * H152mm | 7.3kg | 8.3kg | L670 * W340 * H200mm |
| ST-41-120W | 120W | 100-277VAC 50-60HZ |
Nichia Led | 13915Lm | 120-130Lm/W | L620 * W295 * H152mm | 7.3kg | 8.3kg | L670 * W340 * H200mm |

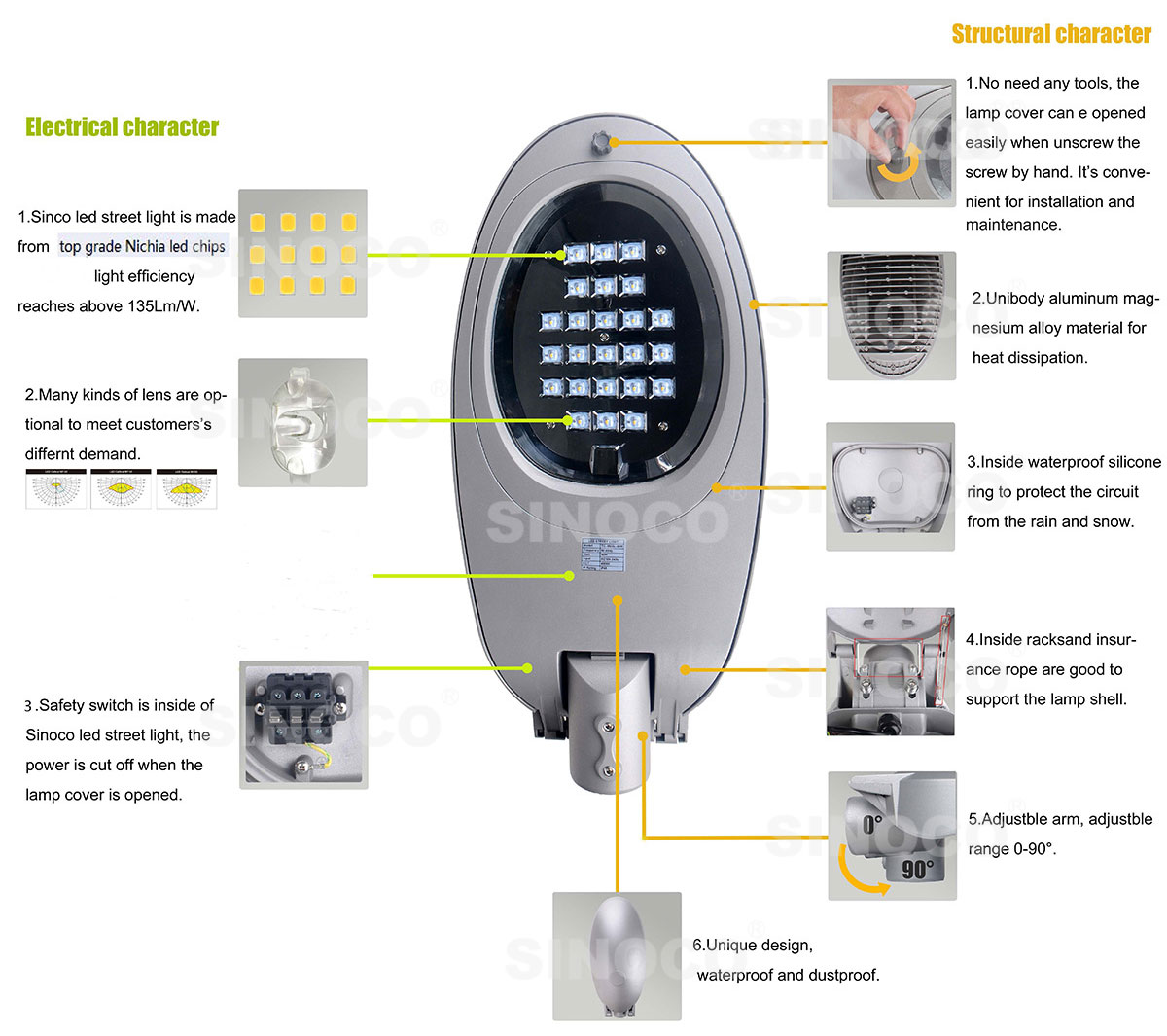

Product Features
