Features

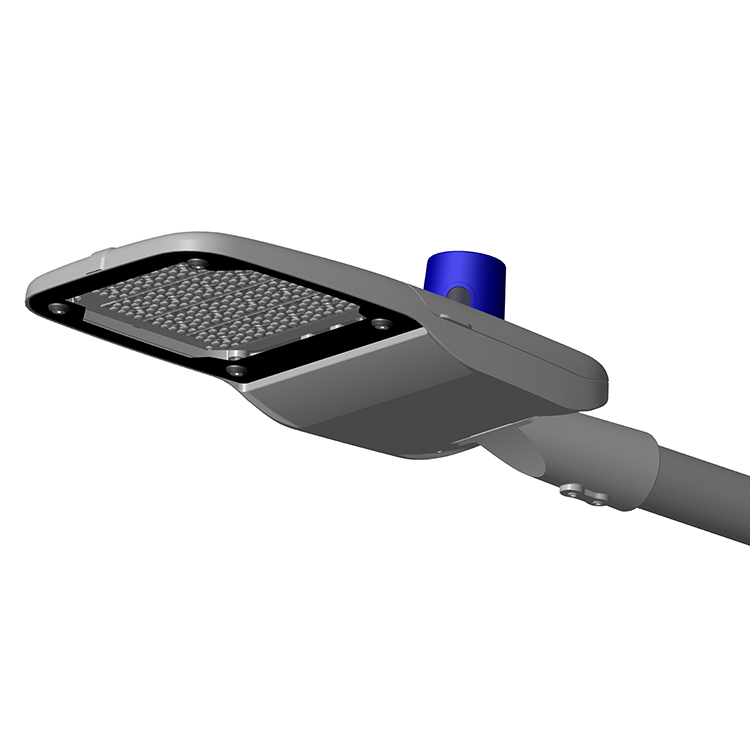

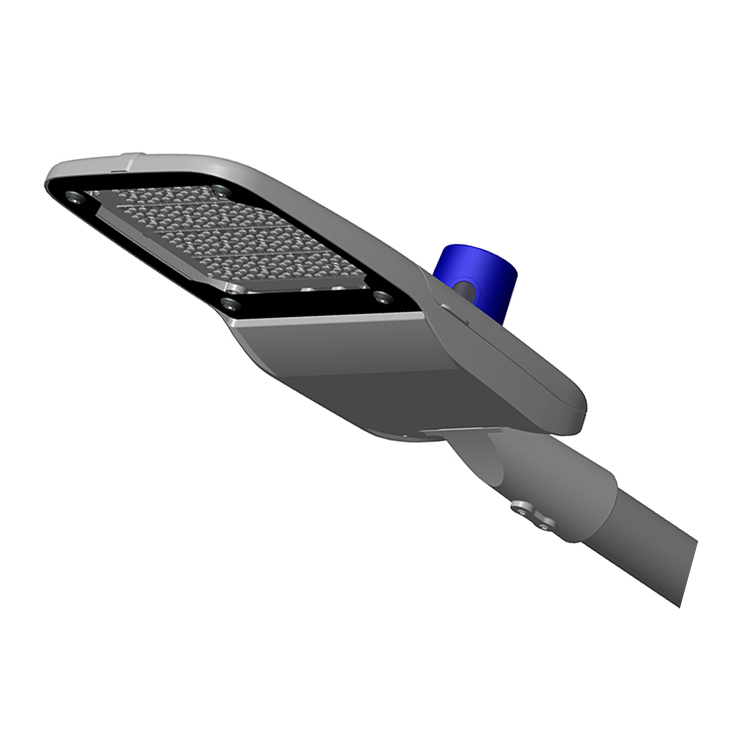

| Product | Led street light (ST-52) |
| Certification | TUV ENEC, CB, CE, IK10, IP66, LM79, LM80, TM-21 |
| Warranty | 5 years |
| Light source | Nichia Led |
| Luminaire’s Efficiency | 150~160Lm/W |
| Optical | High temperature resistant PP plastic reflectorUV treatment surface, super white toughened glass |
| Gear plate | Galvanized steel plate, botton design for opened device |
| Electric | Quick on/off connector when it’s opened |
| Finishing | Surface anti-ageing electrostatic spray processingSuper resistance to corrosion |
| Installation height | 4 – 12M |
| Fixing | Top or side fitting ø60 or ø76mm, angle can be adjustable |
Parameter
| Model | Power | Input voltage | Light Source |
Luminous Flux |
Luminaire’s Efficiency |
Product size | N.W | G.W | Packing(mm) |
| ST-52-30W | 30W | 100-277VAC 50-60HZ | Nichia Led | 4500Lm | 150-160Lm/W | L525 * W255 * H105mm | 5.5kg | 6.7kg | L590 * W290 * H170mm |
| ST-52-40W | 40W | 100-277VAC 50-60HZ | Nichia Led | 6000Lm | 150-160Lm/W | L525 * W255 * H105mm | 5.5kg | 6.7kg | L590 * W290 * H170mm |
| ST-52-60W | 60W | 100-277VAC 50-60HZ | Nichia Led | 9000Lm | 150-160Lm/W | L525 * W255 * H105mm | 5.5kg | 6.7kg | L590 * W290 * H170mm |
| ST-52-80W | 80W | 100-277VAC 50-60HZ | Nichia Led | 12000Lm | 150-160Lm/W | L625 * W290 * H105mm | 7kg | 8.8kg | L680 * W330 * H170mm |
| ST-52-100W | 100W | 100-277VAC 50-60HZ | Nichia Led | 15000Lm | 150-160Lm/W | L625 * W290 * H105mm | 7kg | 8.8kg | L680 * W330 * H170mm |
| ST-52-110W | 110W | 100-277VAC 50-60HZ | Nichia Led | 16500Lm | 150-160Lm/W | L625 * W290 * H105mm | 7kg | 8.8kg | L680 * W330 * H170mm |
| ST-52-115W | 115W | 100-277VAC 50-60HZ | Nichia Led | 17250Lm | 150-160Lm/W | L625 * W290 * H105mm | 7kg | 8.8kg | L680 * W330 * H170mm |
| ST-52-120W | 120W | 100-277VAC 50-60HZ | Nichia Led | 18000Lm | 150-160Lm/W | L625 * W290 * H105mm | 7kg | 8.8kg | L680 * W330 * H170mm |
| ST-52-150W | 150W | 100-277VAC 50-60HZ | Nichia Led | 22500Lm | 150-160Lm/W | L794 * W320 * H122mm | 9.5kg | 10.6kg | L860 * W380 * H170mm |
| ST-52-180W | 180W | 100-277VAC 50-60HZ | Nichia Led | 27000Lm | 150-160Lm/W | L794 * W320 * H122mm | 9.5kg | 10.6kg | L860 * W380 * H170mm |
| ST-52-200W | 200W | 100-277VAC 50-60HZ | Nichia Led | 30000Lm | 150-160Lm/W | L794 * W320 * H122mm | 9.5kg | 10.6kg | L860 * W380 * H170mm |
